Reclamation Mix

Reclamation Mix

For years tile manufacturers have tried to emulate the wide-ranging colours and shapes typical of reclaimed tiles with limited success until now.

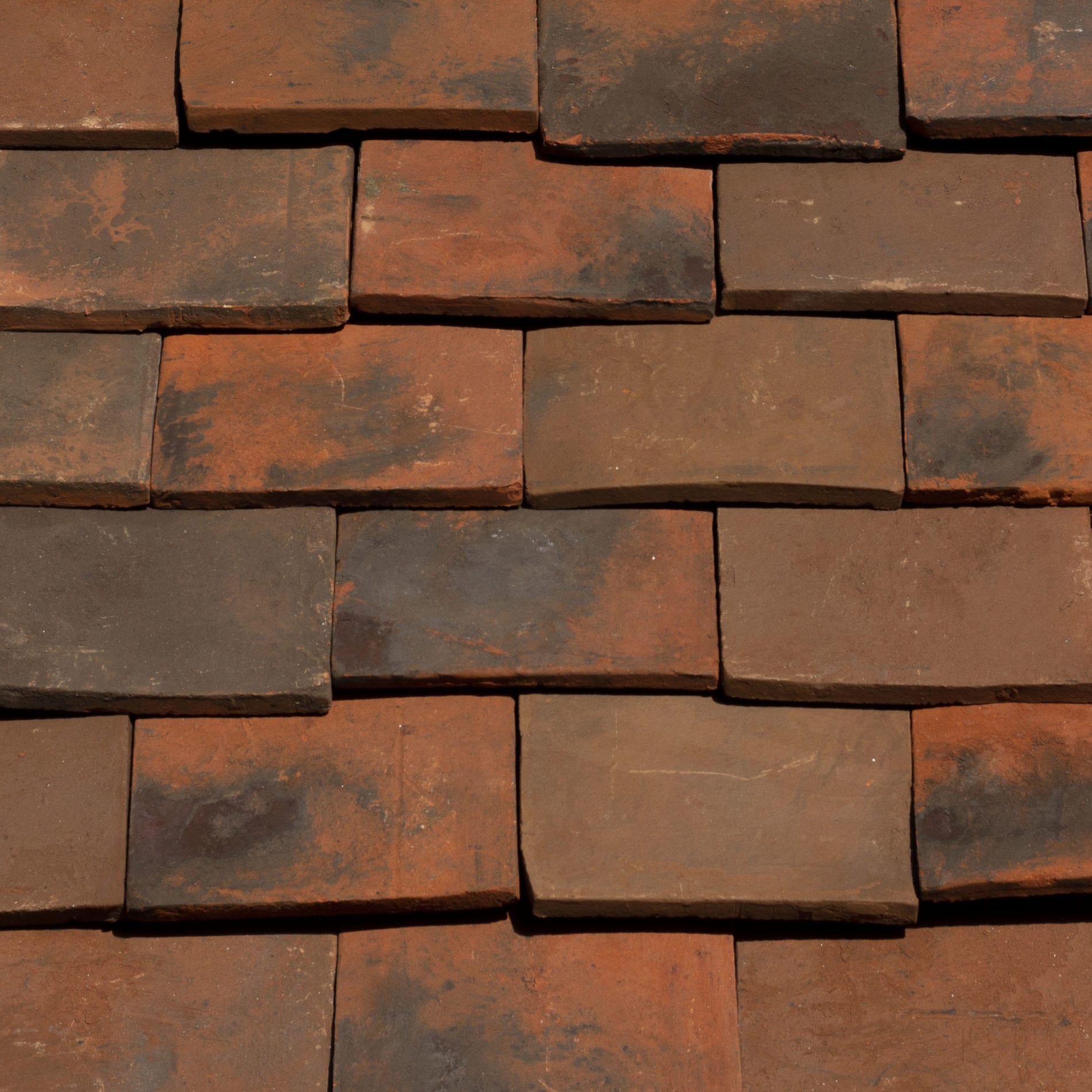

The Reclamation Mix hand made clay tiles has the texture and shade variation of reclaimed tiles, but with all the advantages of a new tile made to stringent European Standards for quality. Sourcing large batches of reclaimed tiles and matching fittings can be a problem – not with the Reclamation Mix which generally in stock in our yard.

Packed in crates that are pre-blended means the roofing contractor will have no worries about trying to blend individual colours as he is laying them.

Request a sample



Category:
000

Expert Advice

You can use handmade clay plain tiles if the pitch of your roof is between 40˚ and 90˚ and they are fixed in accordance with the British Standard Code of Practice for Slating & Tiling BS 5534: 2014. However, if your roof pitch is lower than 40˚, please contact us with details of your requirements  and it is very possible we can offer a solution to guarantee the use of handmade plain tiles down to pitch as low as 17.5˚.

Our handmade clay plain tiles are used extensively across the UK on refurbishments and new builds alike. Our tiles are widely accepted in Conservation Areas and Areas of Outstanding Natural Beauty and are regularly used on Churches, Historic and Listed Buildings, etc.

Technical Info

Description

Roof

Vertical

Minimum roof pitch

40˚

75˚

Headlap (minimum)

65mm

38mm

Batten spacing at maximum gauge

100mm

114mm

Size of tile

265 x 165mm

265 x 165mm

Covering capacity

60.0 tiles per m²

53.0 tiles per m²

Cover width

165mm

165mm

Weight as laid

82.5 kg per m²

72.9 kg per m²

Battens per m²

10m

8.7m

Batten size

38 x 25mm

38 x 25mm

Nail size/ type for tiles

38 x 3.35mm alloy clout

38 x 3.35mm alloy clout

Product Info

All tiles comply with C E Marking to British and European Standard BS EN 1304, which legislates for externally tested and verified quality of roof tiles. The tiles are independently tested to the following standards by Lucideon (approved by UKAS and the British Standards Institute):

Determination of Impermeability : BSEN 539-1:2005 Method 2 & BSEN 1304:2005

Determination of Flexural Strength : BSEN 538:1994

Determination of Frost Resistance : BSEN 539-2:2013
